AURORA
Continuously Tunable Femtosecond OPA
- Tuning range from 210 nm to 16 μm
- Compatible with up to 2mJ pump energy
- Conversion efficiency up to > 13.5%
The AURORA femtosecond optical parametric amplifier is based on a stable optical and mechanical design, enabling flexible and tunable femtosecond laser pulse output. The wavelength range covers from ultraviolet (as short as 210 nm) to mid infrared (up to 16μm).
The AURORA femtosecond optical parametric amplifier is compatible with market-standard fiber and solid-state Yb ultrafast lasers, with a pump energy reception range of 10μJ to 2mJ and a pulse width compatibility range from 100fs to 1.5ps. Customers can achieve precise tuning of the desired center wavelength with a single click, without the need for complex manual adjustments. Comprehensive custom solutions can be provided according to customer requirements.
Carrier-Envelope Phase Stabilization
Achieving repeatable alignment between the pulse envelope and the peak of the carrier electric field is the cornerstone of attosecond science for exploring electron dynamics.
CARS and SRS Microscopy
A nonlinear vibrational imaging technique that uses a pump–Stokes–probe four-wave mixing process to generate a resonant anti-Stokes signal, enabling label-free chemical mapping with high speed and intrinsic vibrational contrast.
Parameter | AURORA-HP | AURORA-HE | |
|---|---|---|---|

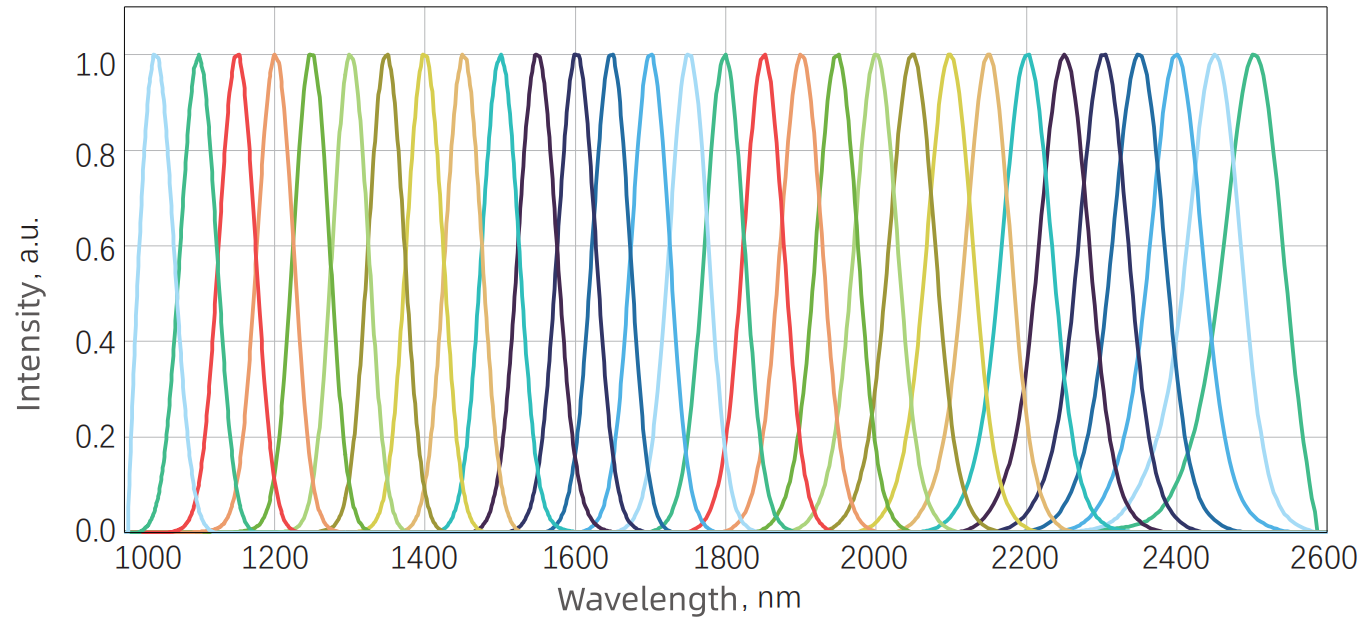

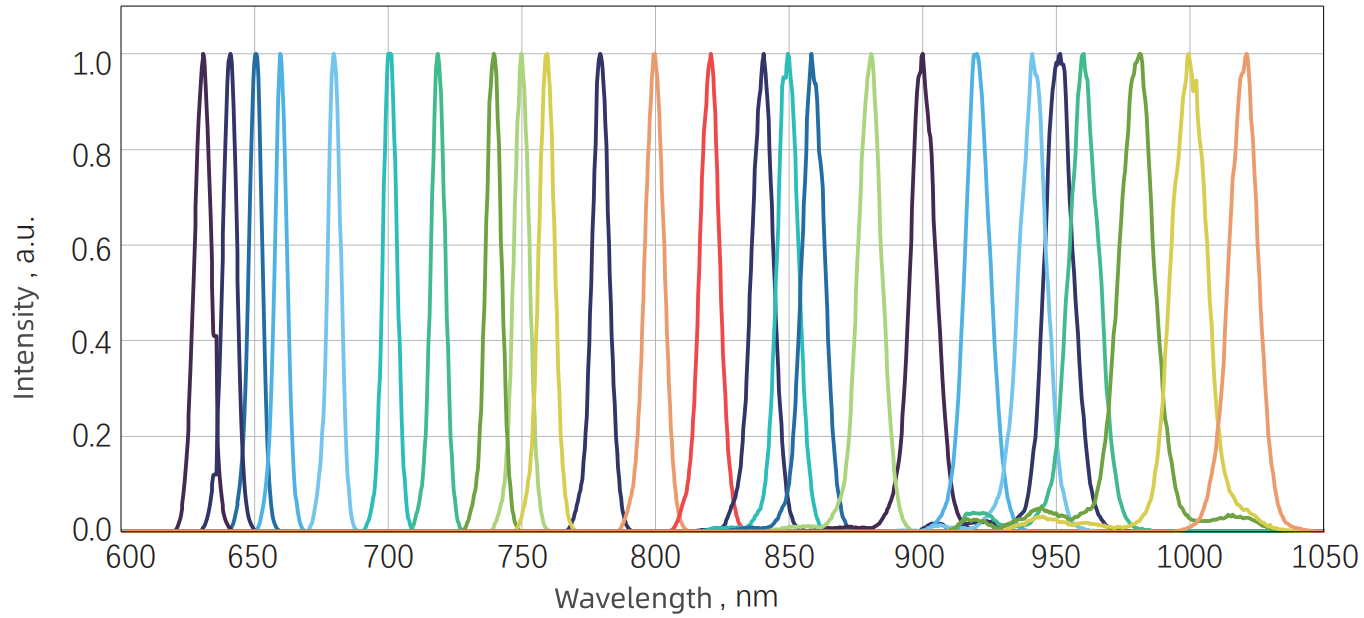

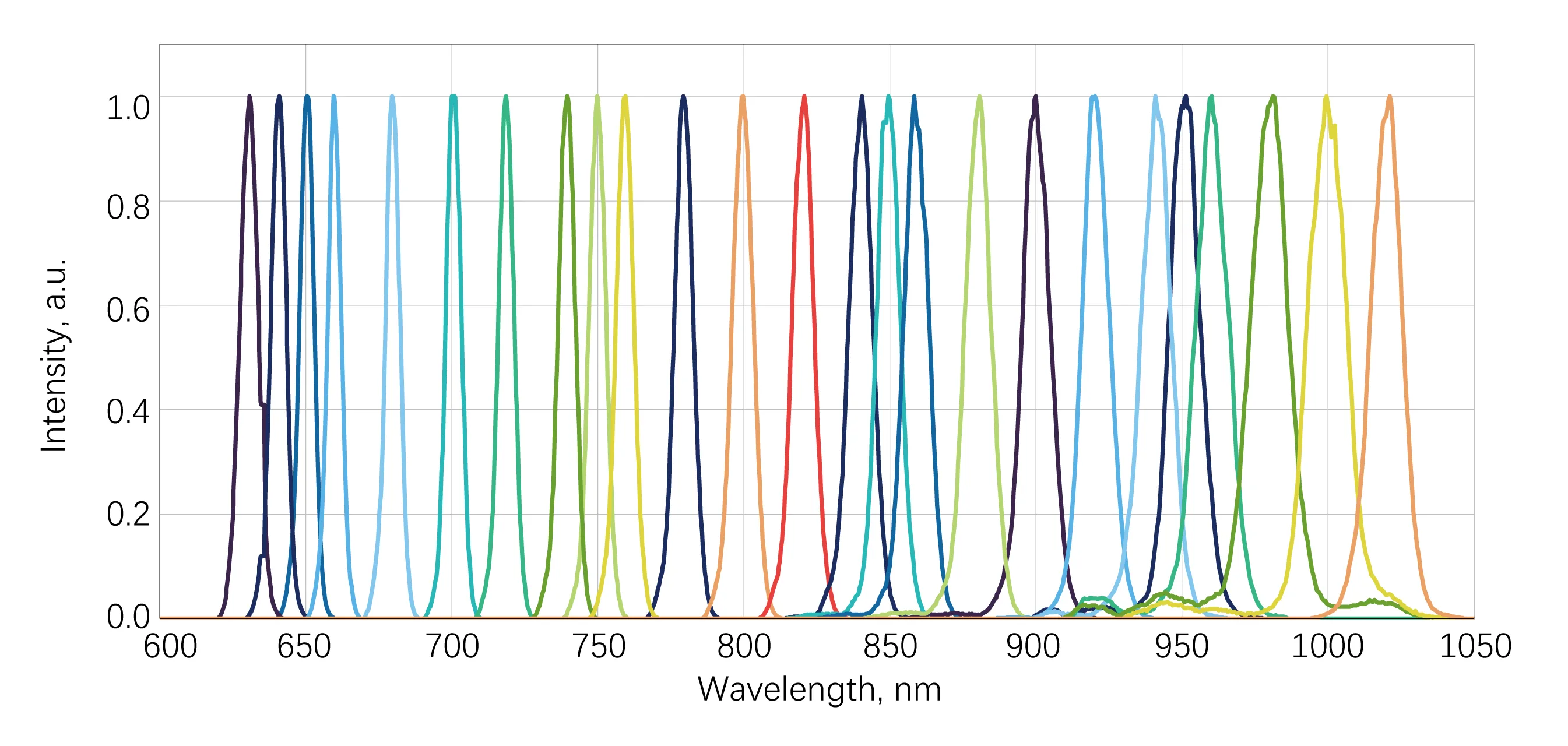

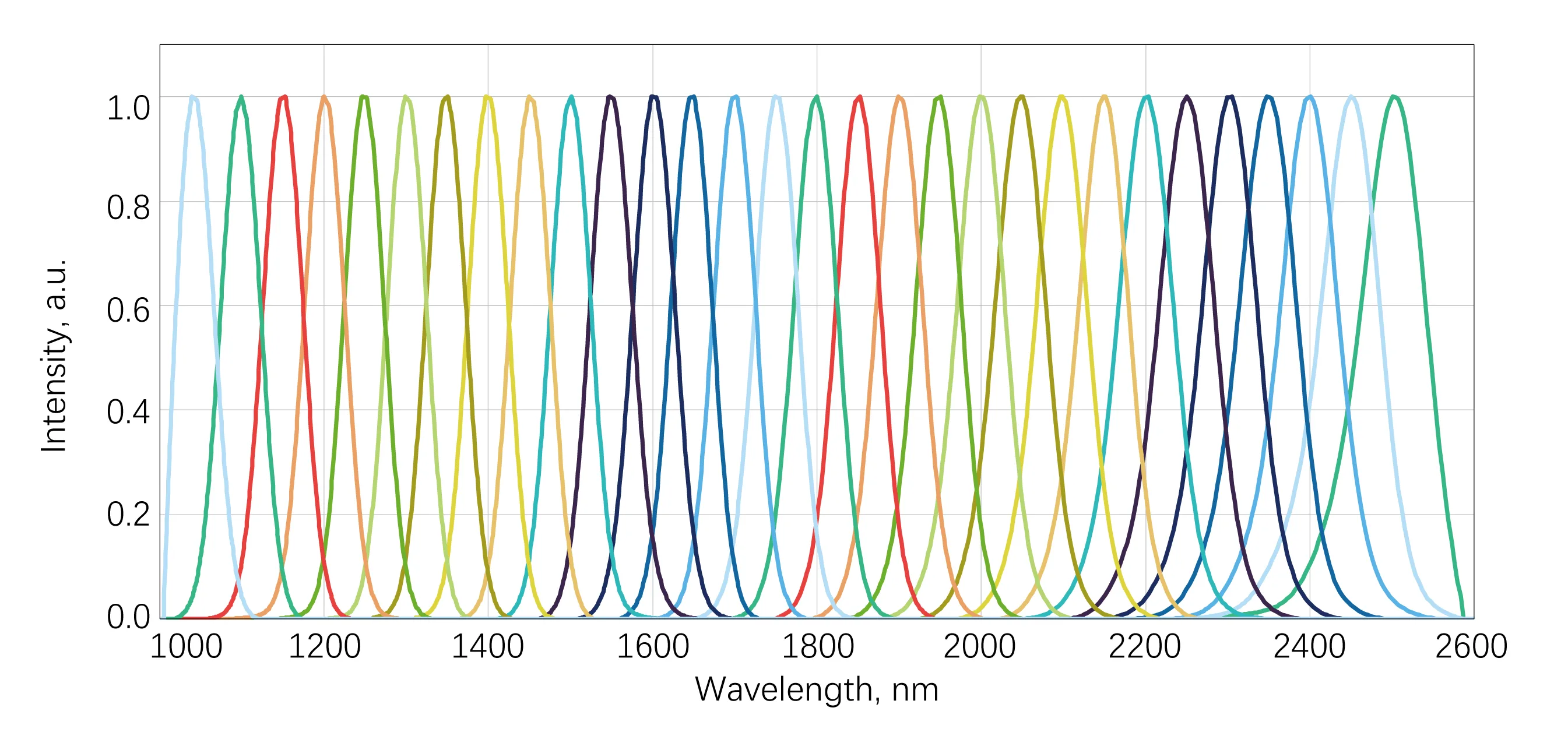

Tuning range | 630 – 1036nm （Signal） 1036 – 2600nm (Idler) | ||
Maximum pump power | 80W | ||
Pump pulse energy | 10 - 20uJ | 20-200uJ | 200 - 2000uJ |

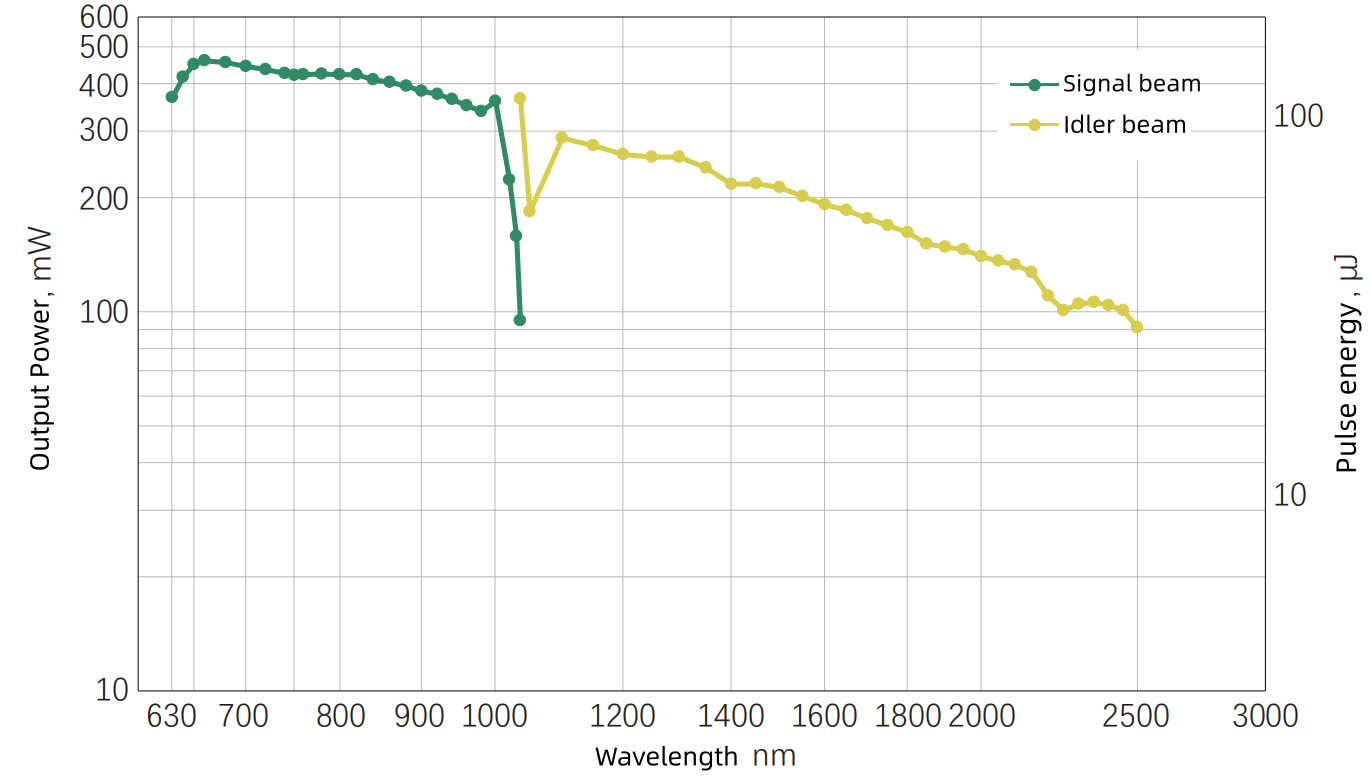

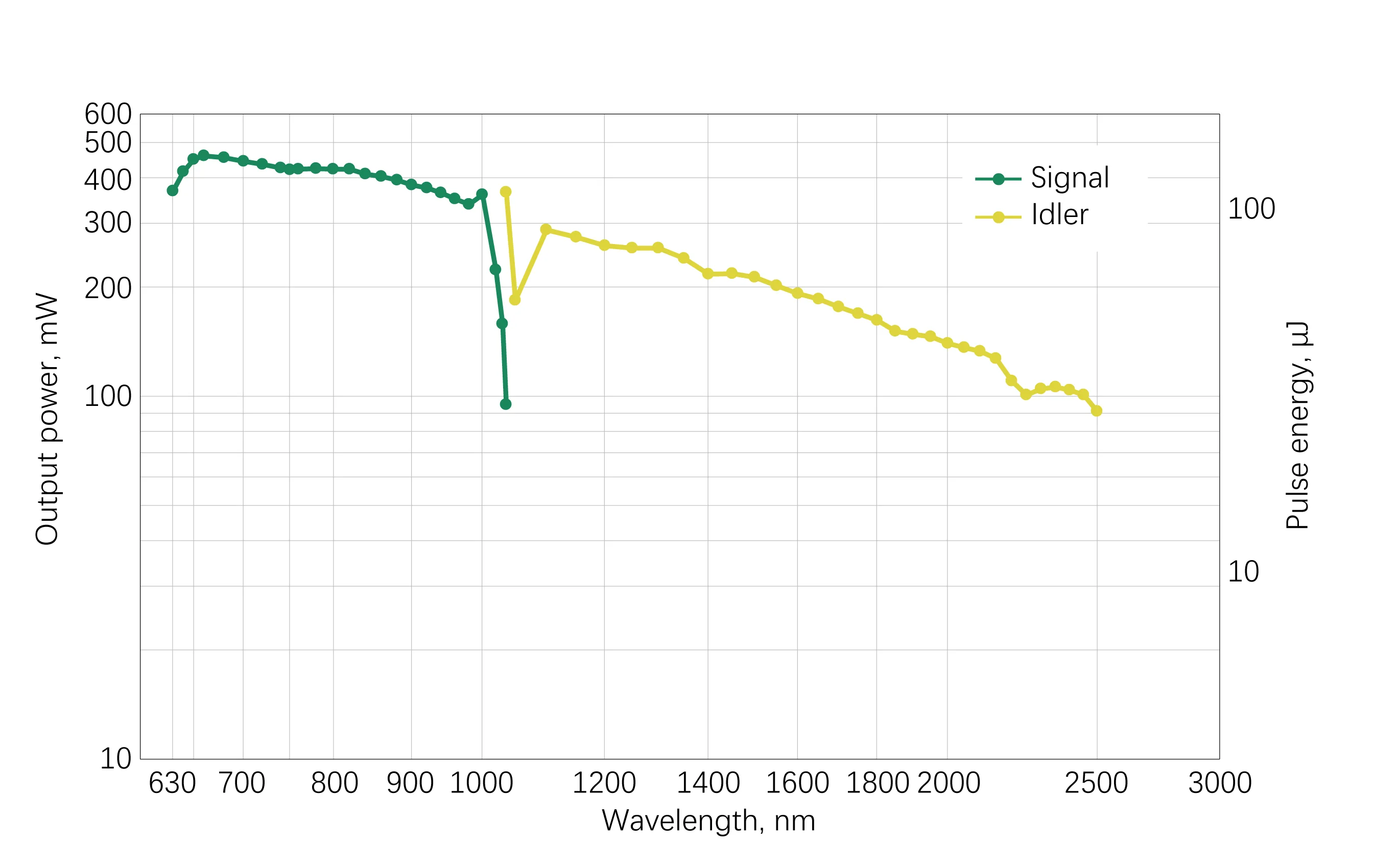

Peak conversion efficiency | > 4.5% (Signal) | > 7% (Signal) | > 9% (Signal) |
> 2% (Idler) | > 3.5% (Idler) | > 4% (Idler) | > 4% (Idler) |

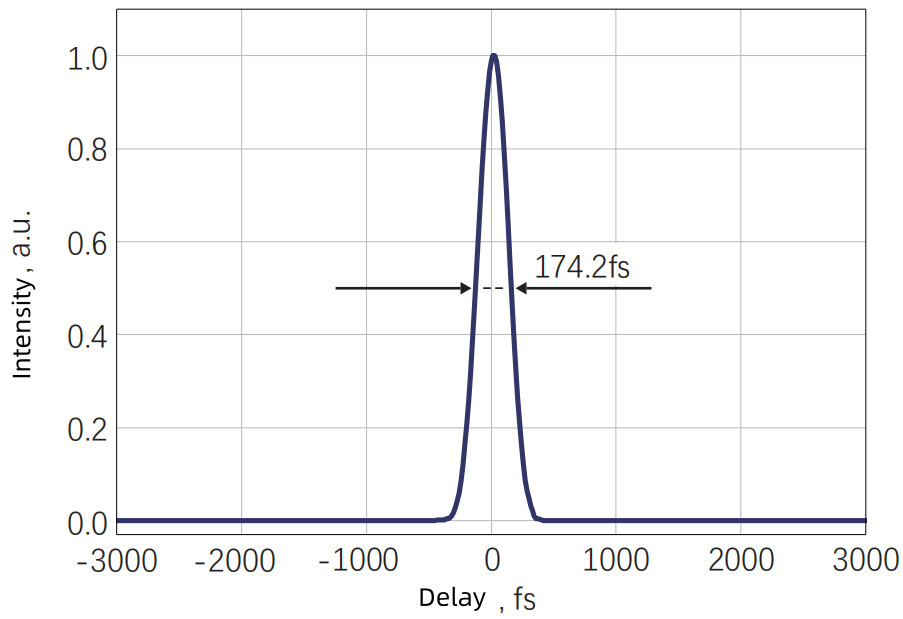

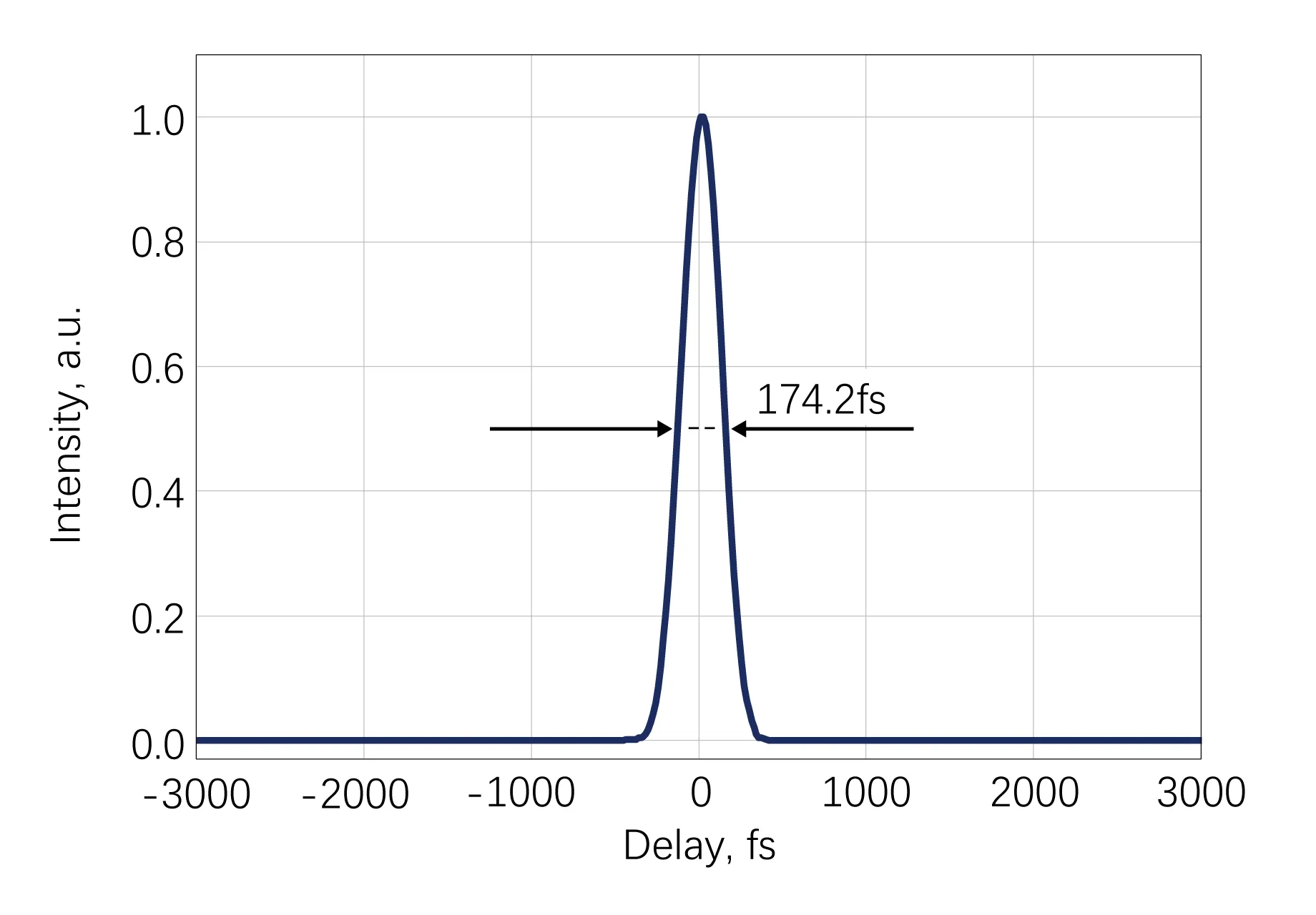

Pulse duration | 120 - 400fs | ||
Spectral bandwidth | 60 - 220cm-1 | ||

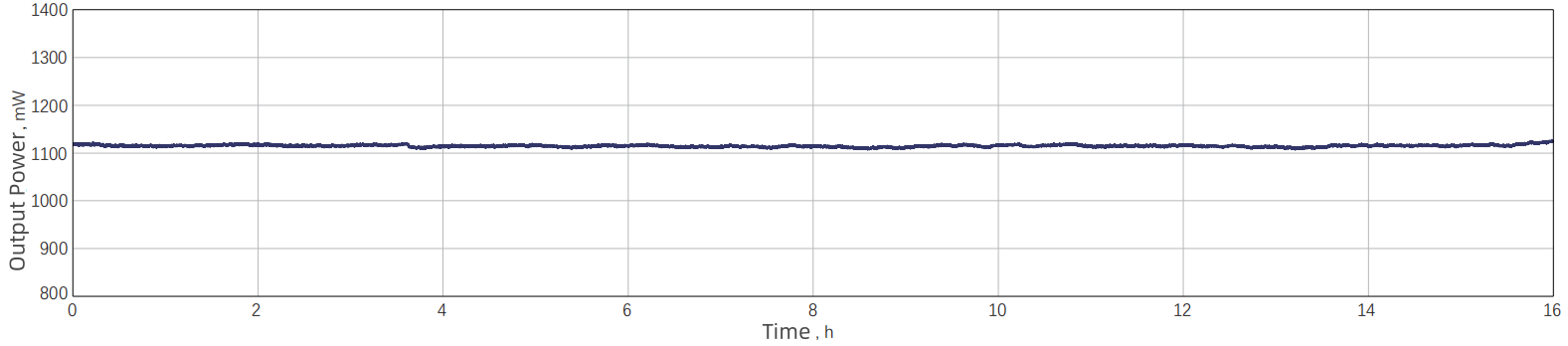

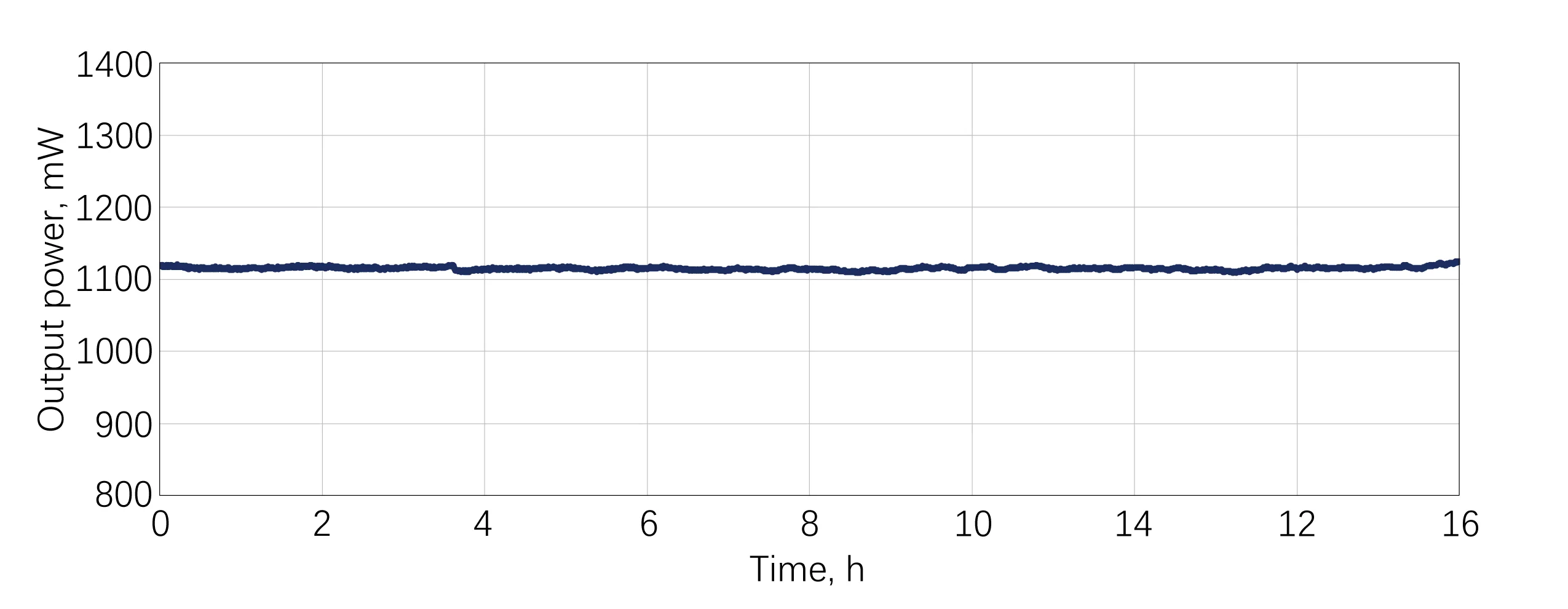

Long-term power stability | < 2% RMS@ 750 nm | ||
Pulse-to-pulse energy stability | < 2% RMS@ 750 nm | ||
Polarization | Linear polarization | ||

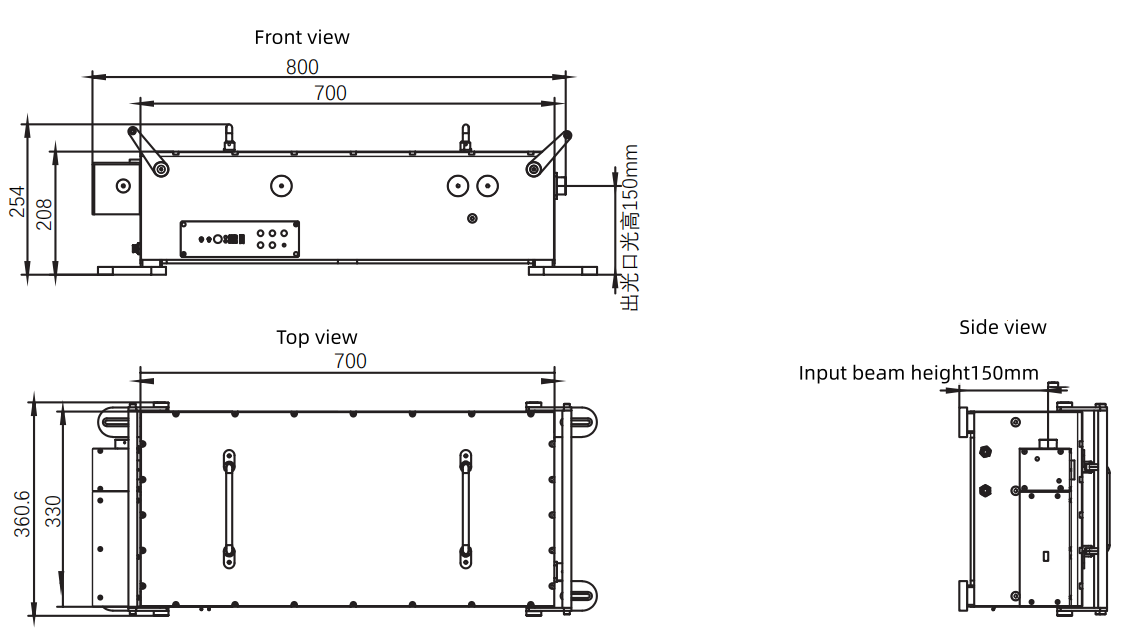

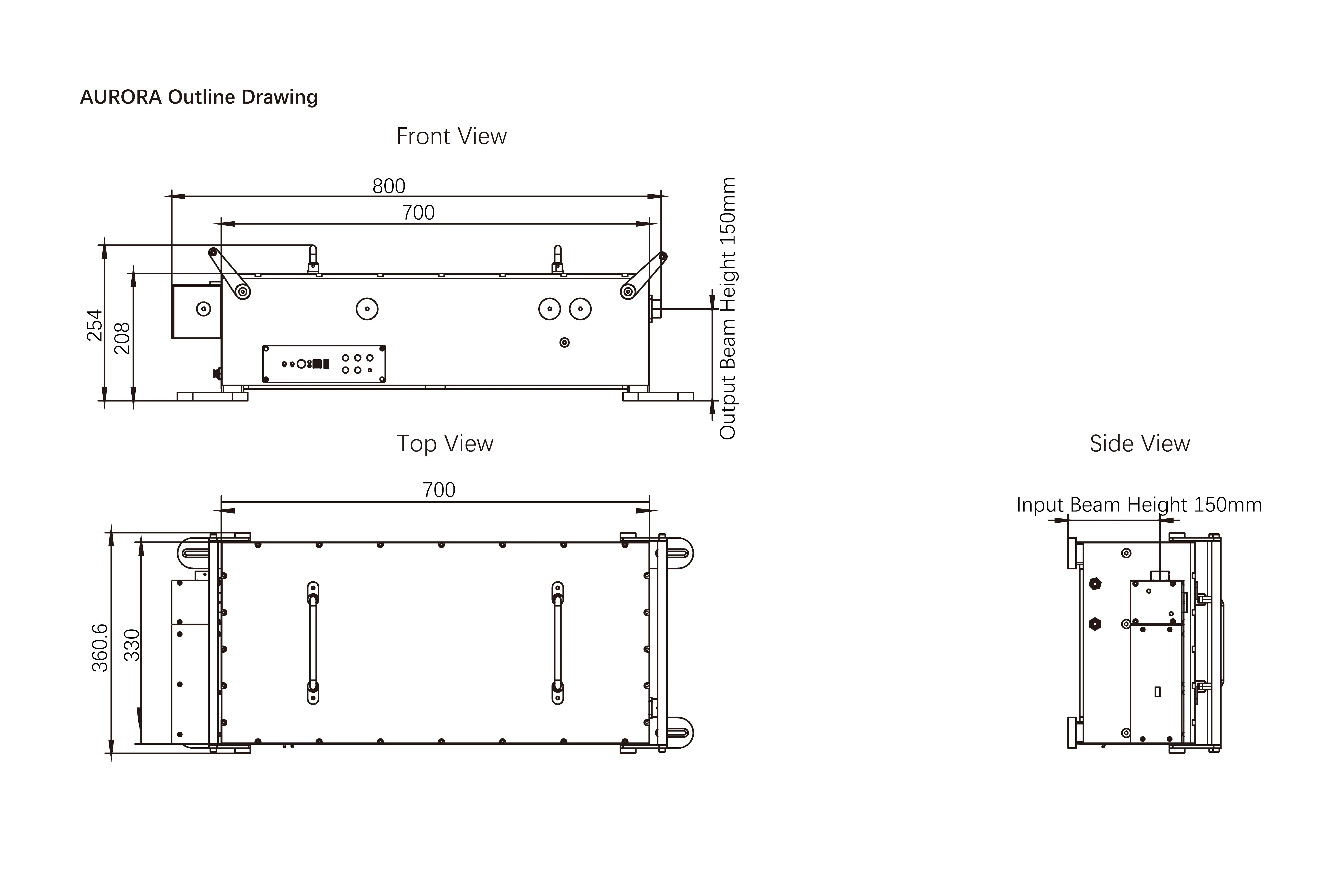

Dimensions (L×W×H) | 800 x 330 x 254mm | ||
Weight (kg) | 57kg | ||
Expansion Options | |||
Pump pulse energy | 10 - 20μJ | 20 - 200μJ | 200 - 2000μJ |
315 - 630nm（SHG） | ＞ 1% @ 350nm | ＞ 2% @ 350nm | |
210 - 315nm（THG） | ＞ 0.4% @ 250nm | ＞ 0.4% @ 250nm | |
2200 - 4200nm（DFG1） | ＞ 1.5% @ 3000nm | ＞ 3% @ 3000nm | |
4000 - 16000nm（DFG2） | ＞ 0.1% @ 10000nm | ＞ 0.2% @ 10000nm | |
Remaining weight | 24 kg (chiller) + 17 kg (frequency doubling) | ||
Power supply requirements | AC 220 V / 10 A; 24 V DC power supply for motor drive, total power ≤ 150 W | ||
Chiller power supply requirements | CWUP-10AI; operating voltage 220 V; operating current 0.6–5.6 A; rated power 1.02 kW; cooling capacity 0.75 kW | ||
1）Normalized Root Mean Square Deviation (NRMSD)
