HYPERION-G
High-Energy MPC Pulse Compressor
- Pulse width compressed to <35fs, suitable for ultrafast laser applications.

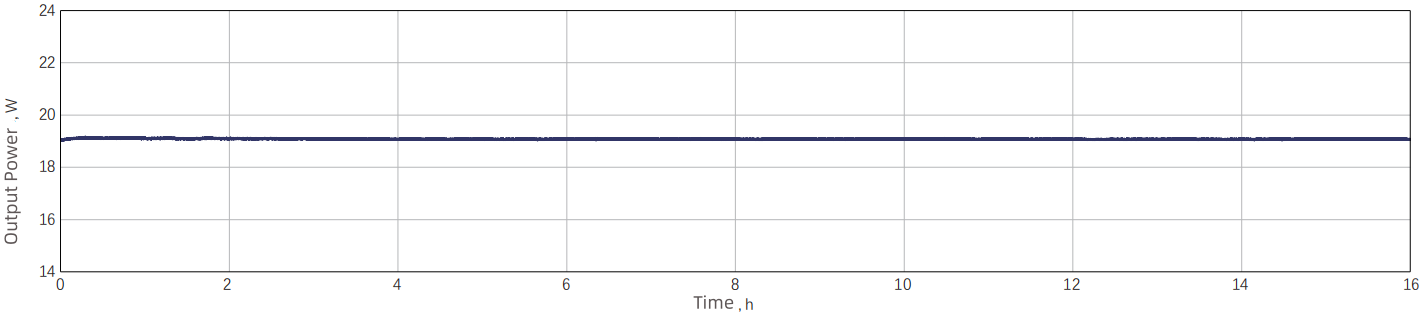

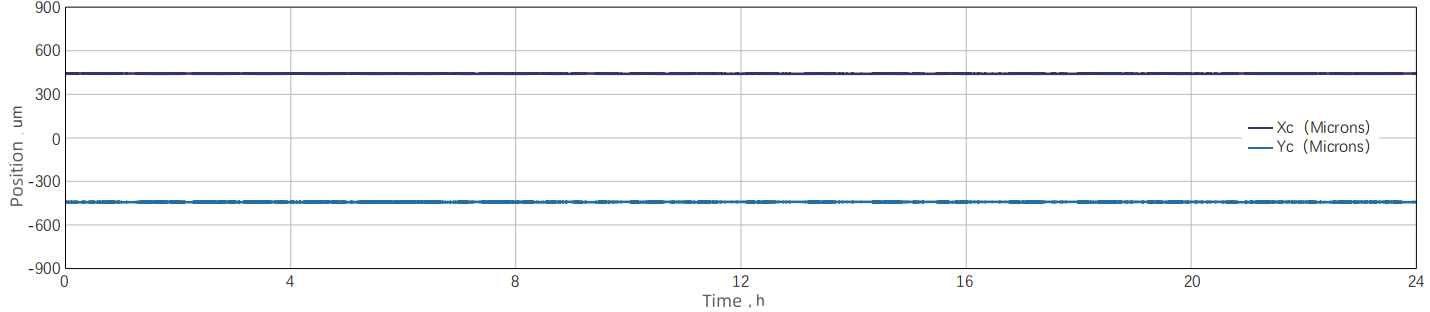

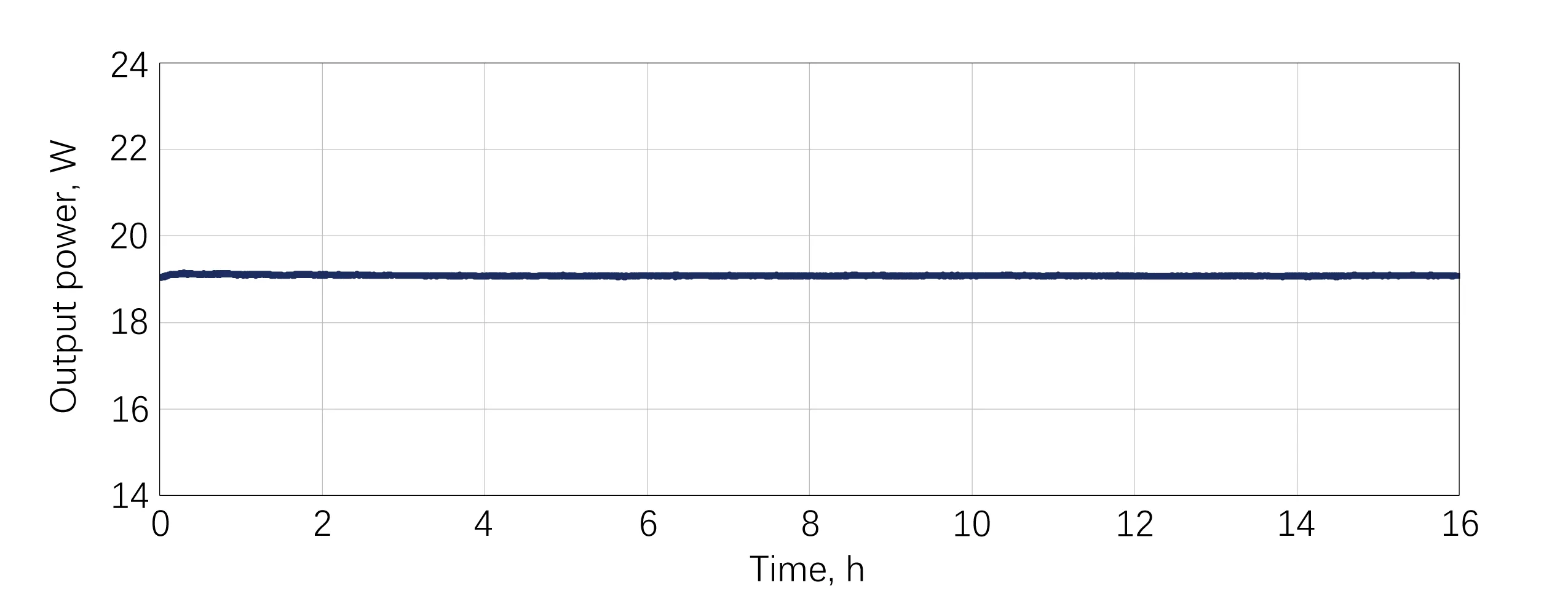

- <0.5% RMS power fluctuation over 24 hours, ensuring 24/7 long-term stable operation.
- Compression efficiency >90%, maintaining high energy density output.

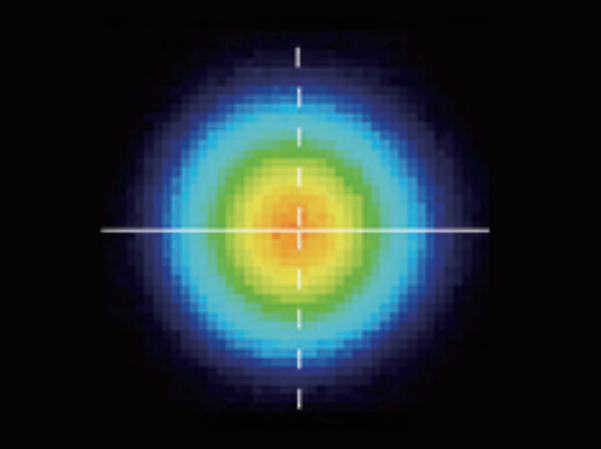

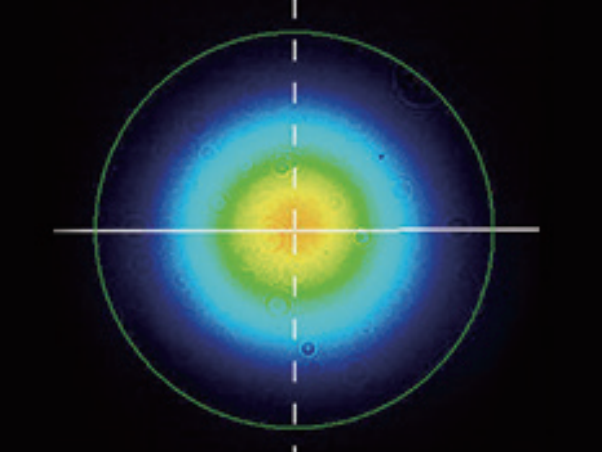

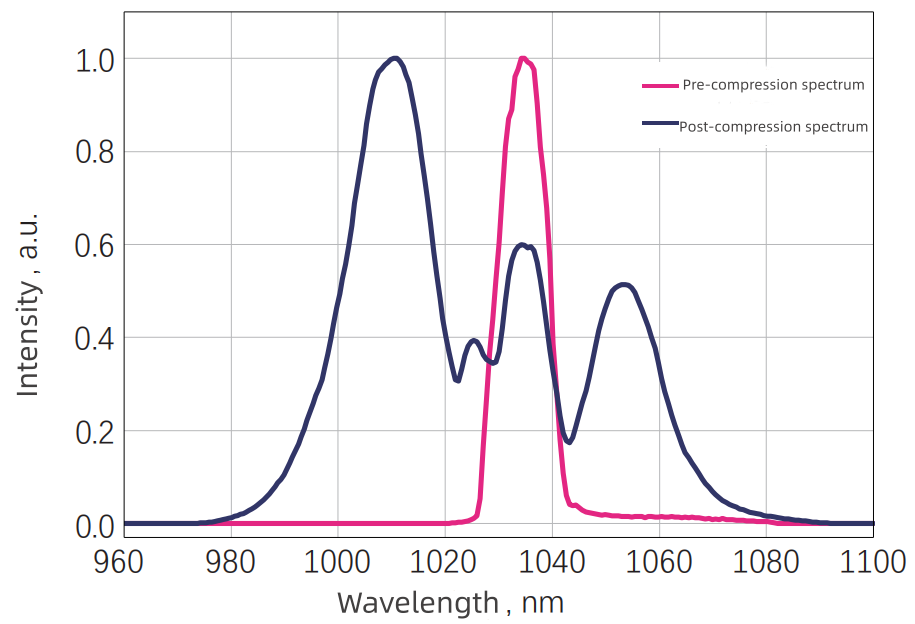

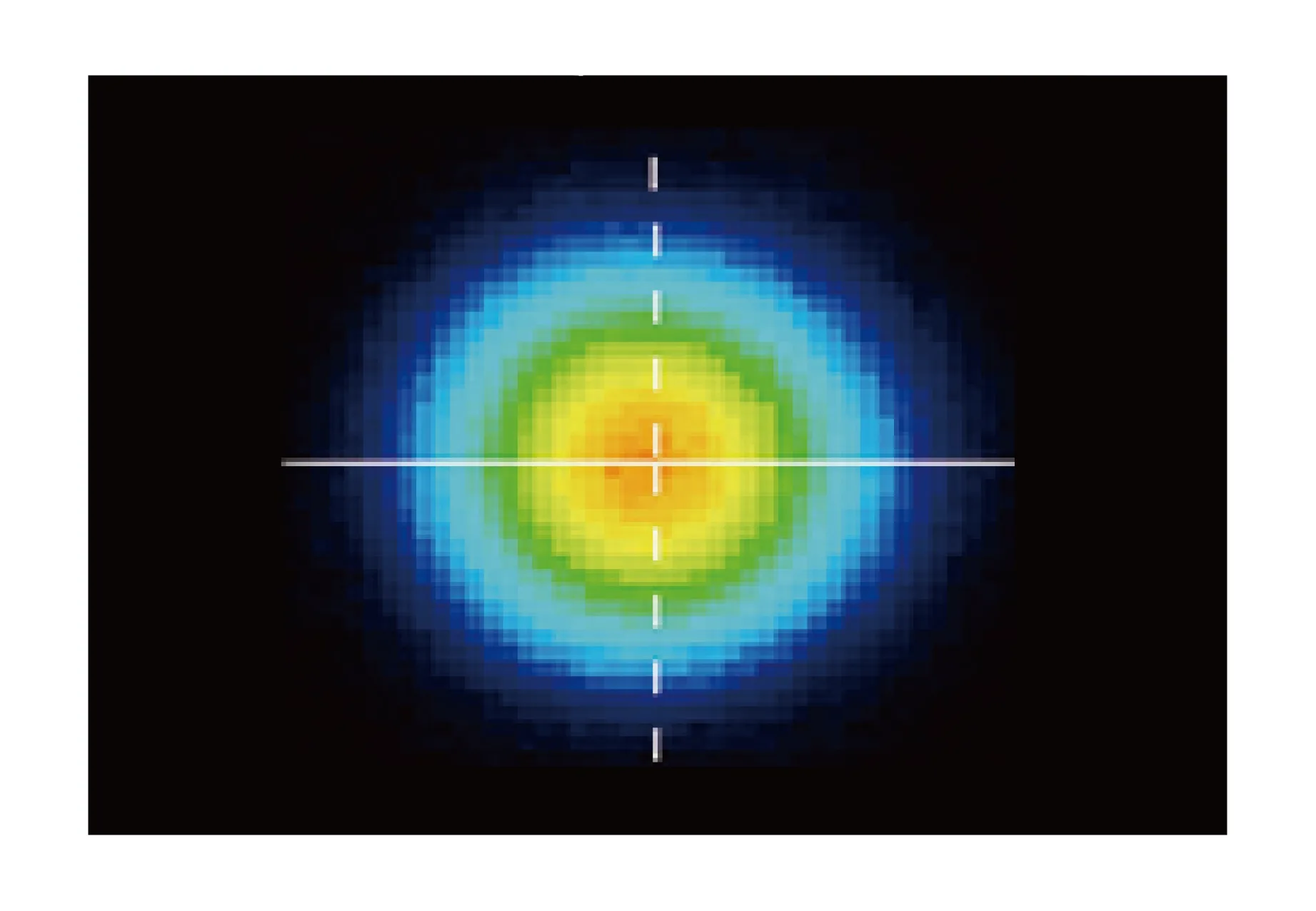

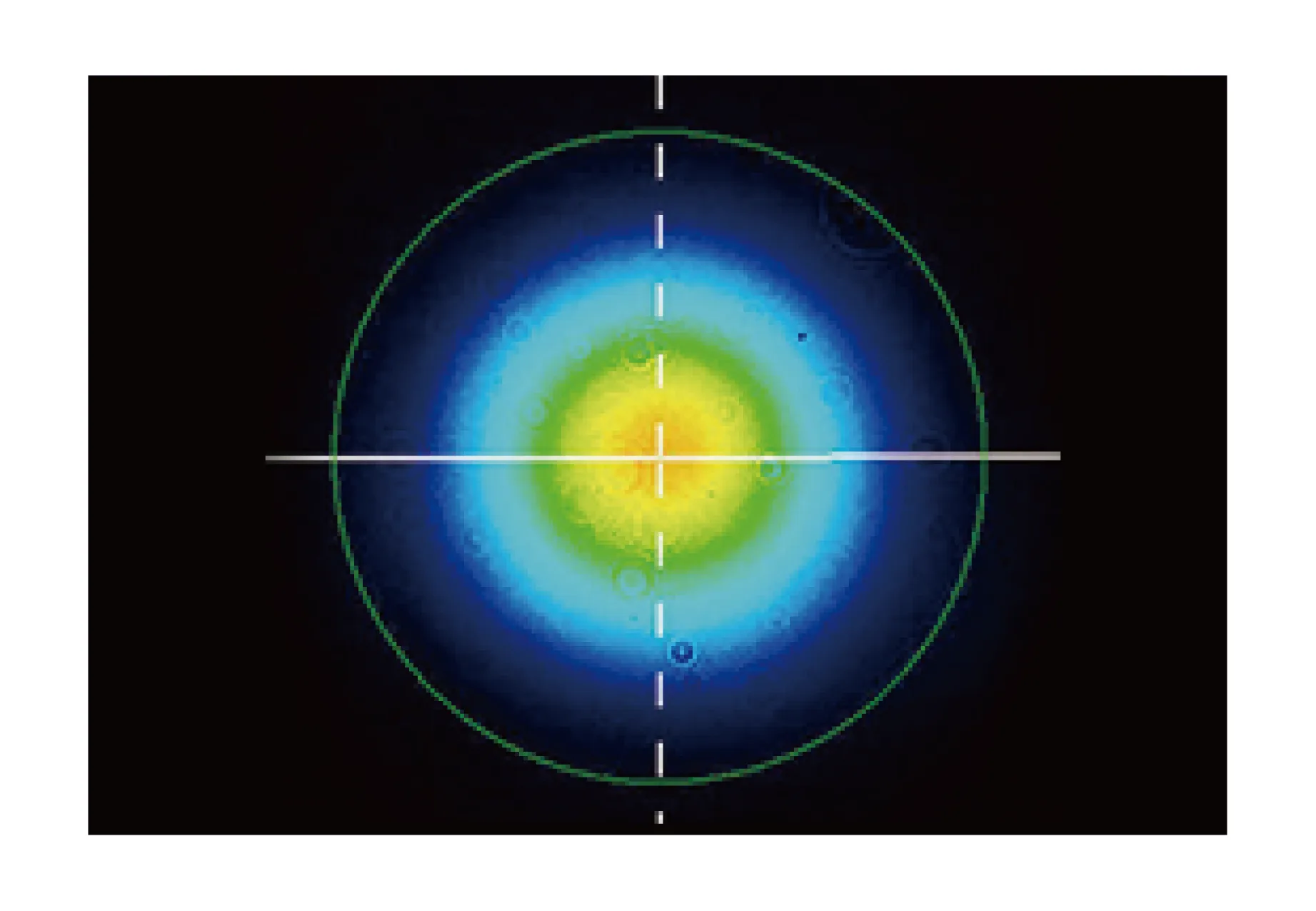

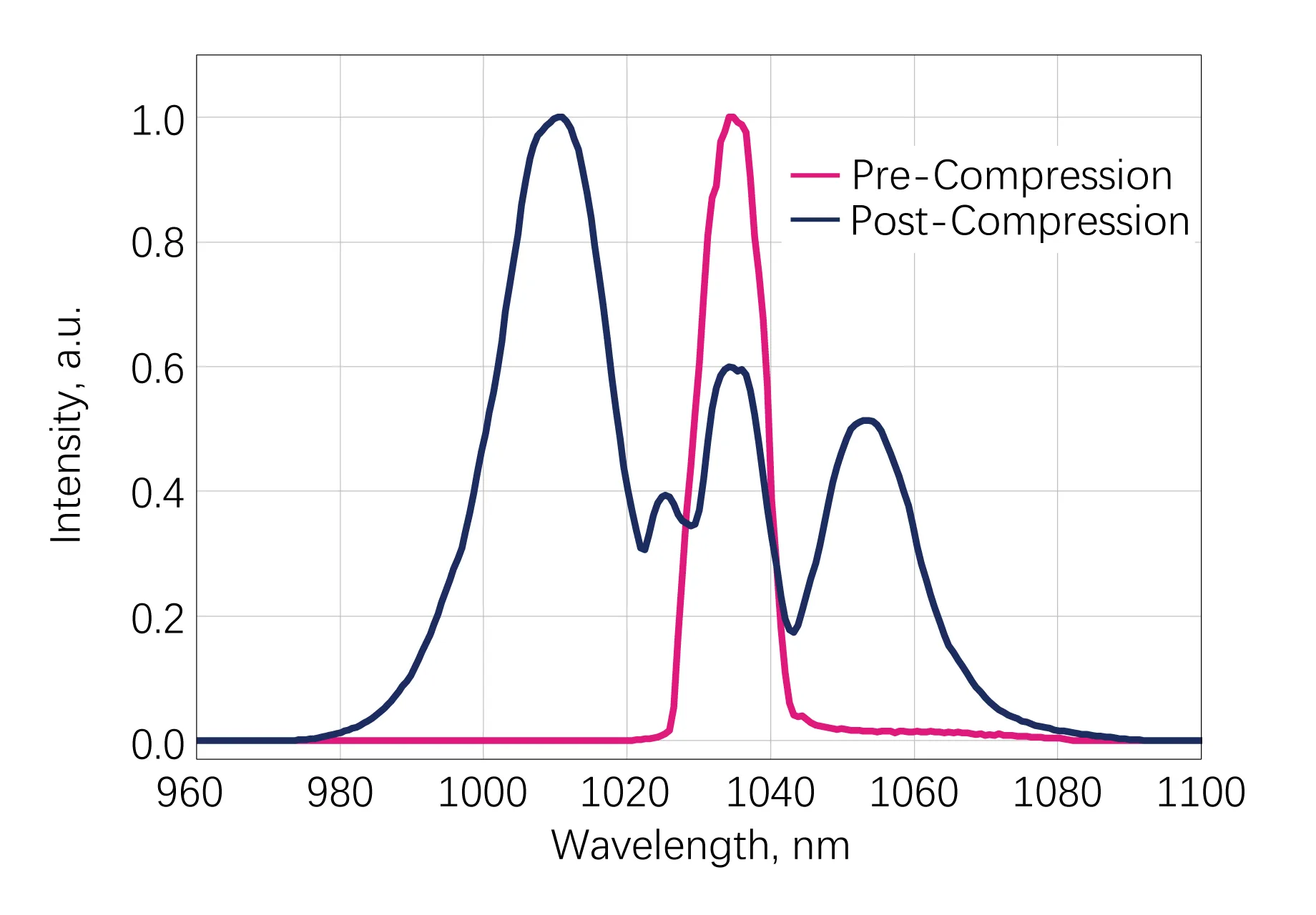

The HYPERION-G series is a pulse compressor using nonlinear technology to compress input laser pulses through spectral broadening. It features advanced cavity design and high-quality femtosecond optics for minimal transmission loss. The built-in monitoring system ensures stable pulse output by checking the spot quality in real time.
This pulse compressor offers excellent interference resistance, long lifespan, and can provide 5-10 times pulse compression, making it ideal for high-power, high-repetition-rate Yb femtosecond lasers.
Parameter | HYPERION-G |
|---|---|

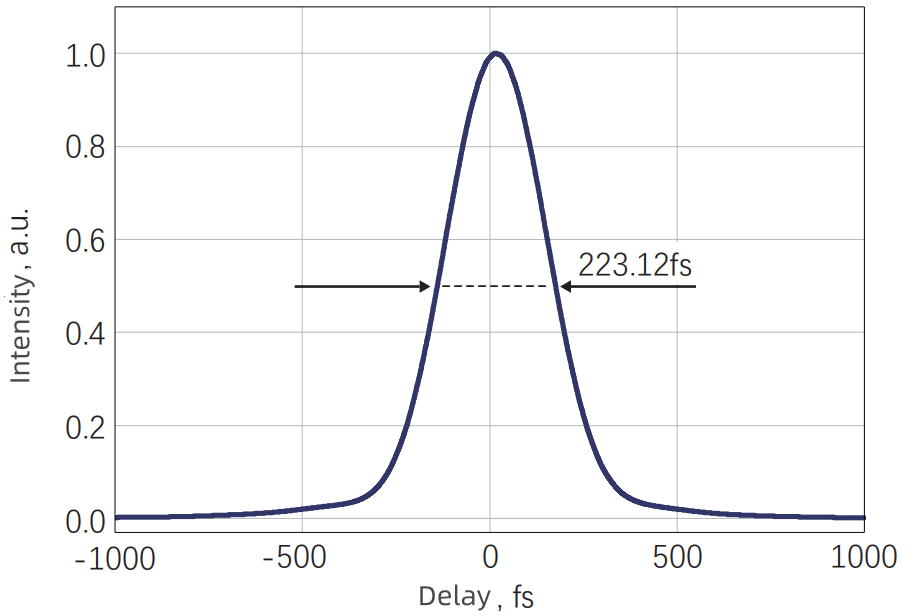

Incident pulse width | 150 fs-1 ps |
Incident pulse energy | 20 - 400 μJ |
Incident laser central wavelength | 1036 ± 5 nm |
Maximum compatible power | 80 W |
Typical compression ratio | 5 - 10 |
Compressor efficiency | >90% |

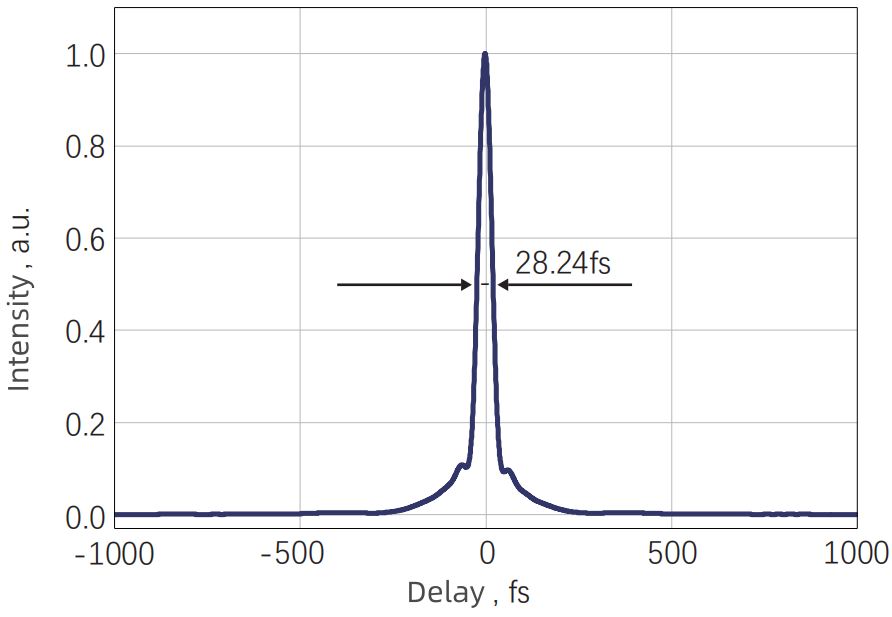

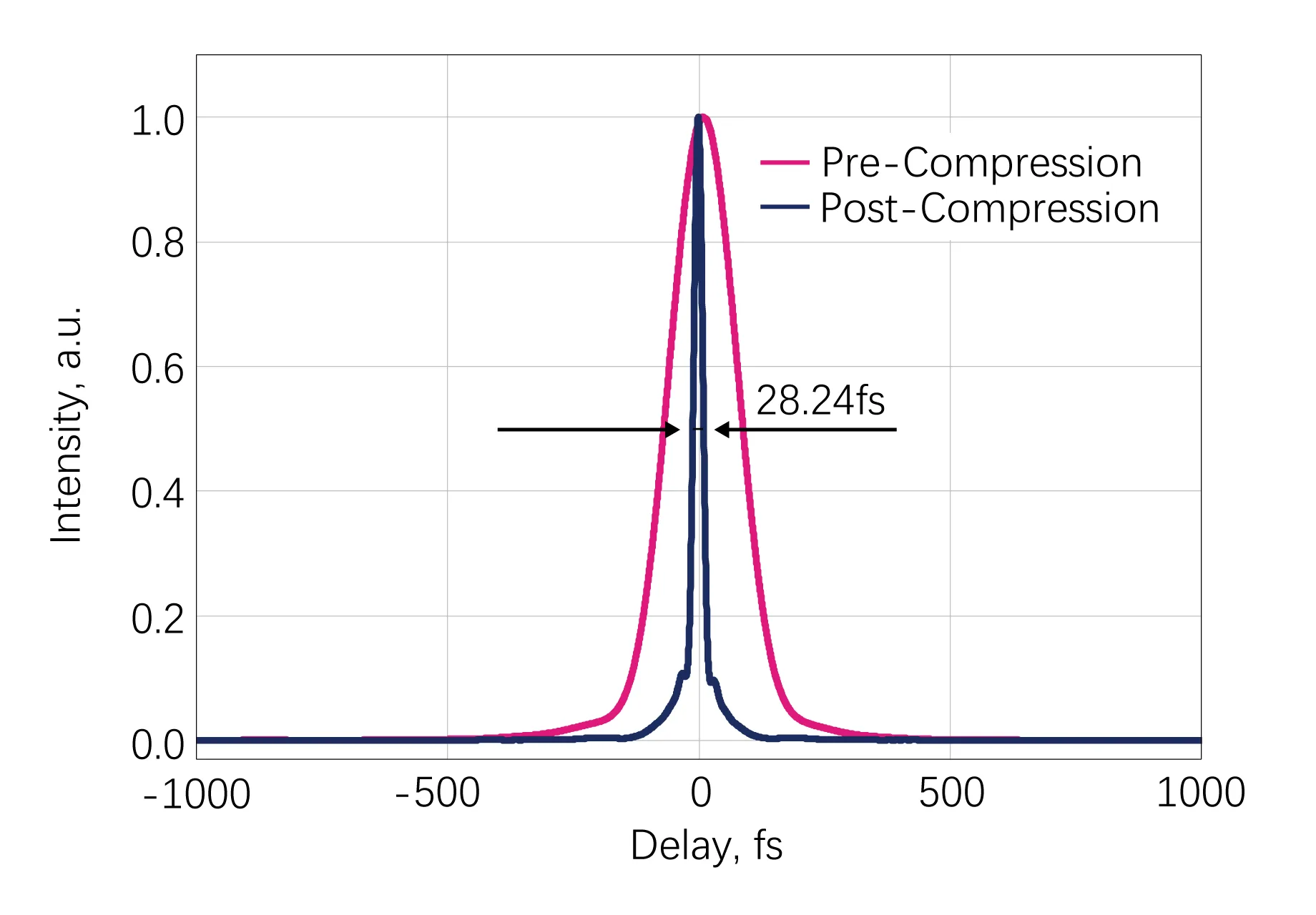

Typical output pulse width | <35 fs |
Compatibility | Can be cascaded with HCF system to output few-cycle pulses |

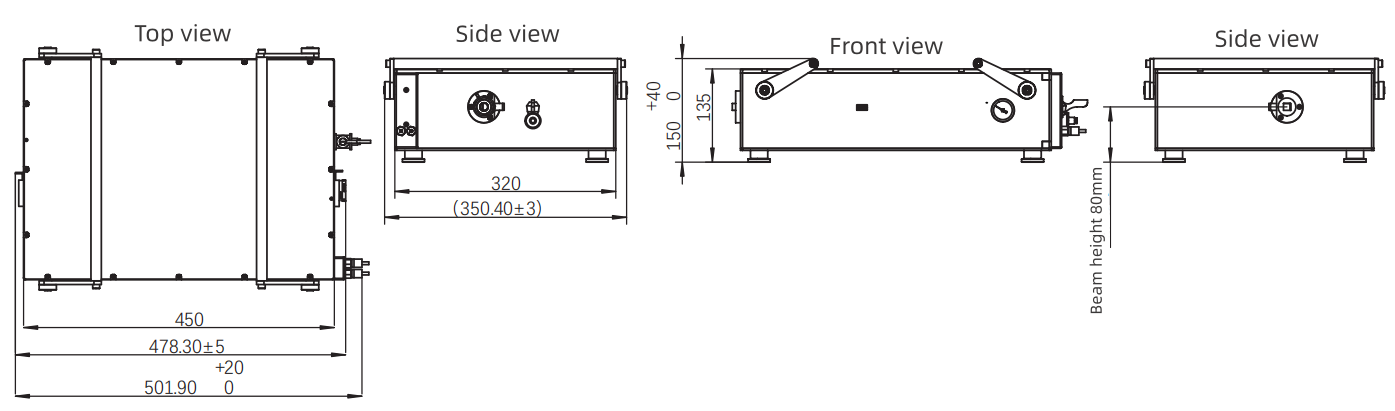

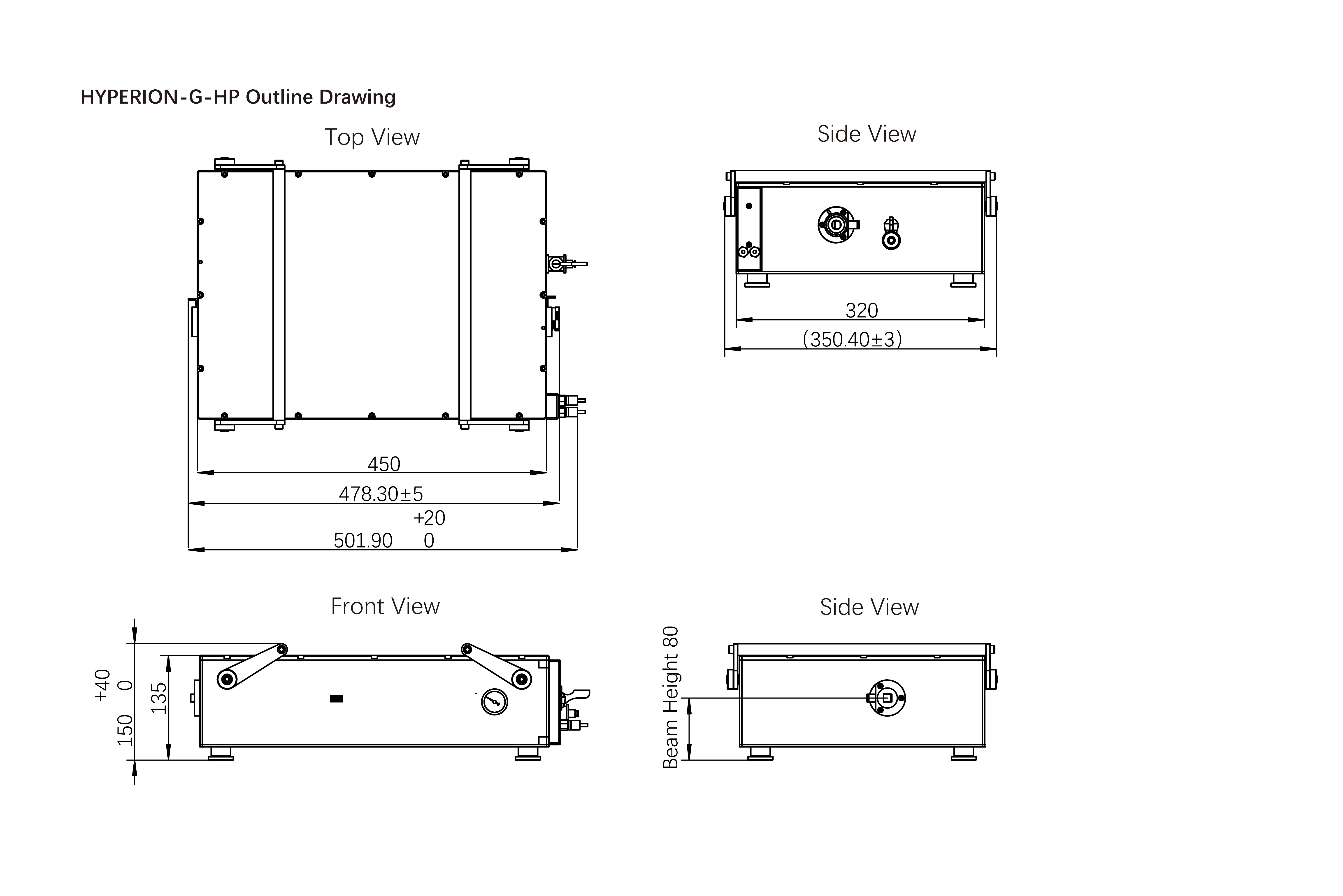

Dimensions (L×W×H) | 490 x 353 x 135 mm |
Weight (kg) | 61 kg |
Remaining weight (kg) | 24 kg（Water-Cooled Machine） |
Power supply requirements | AC 220V/10A |
Power supply requirements for | 220V/0.6-5.6A/1.02kW（CWUP - 10AI） |
Note:
Special customization is available based on customer requirements for parameters such as wavelength range and pulse width. If you need more detailed information or have any questions about this MPC pulse compressor please feel free to contact our technical support team.
