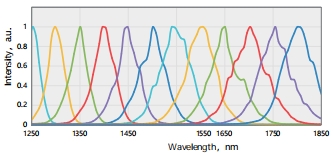

Tuning range：1250 - 1800 nm
Efficiency optimized at 1300/1700 nm
Maximun repetition rate up to 1 MHz
Output pulse width as short as60 fs
Integrated automatic control for group delay dispersion (GDD)
Mechatronic integrated design

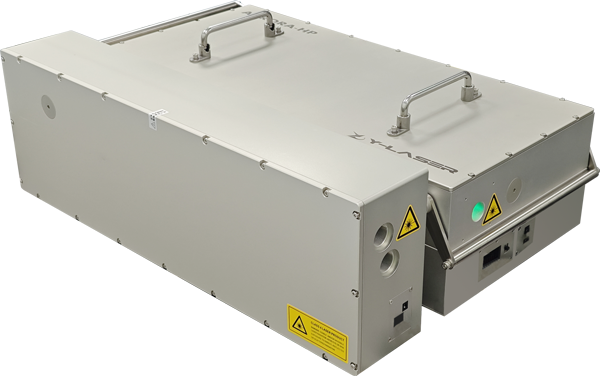

The AURORA-3P is a broadband tunable ultrafast laser source specifically developed for three-photon (3P) imaging research. Featuring a stable optical and integrated mechanical design, the AURORA-3P offers excellent performance with narrow pulse width and high repetition rate, perfectly meeting the peak power requirements for three-photon excitation. It provides a wide wavelength tuning range, including the 1300 nm and 1700 nm wavelengths required for three-photon imaging, making it an ideal light source for ultrafast three-photon imaging and enabling higher quality fluorescence labeling signals.
| Parameter | AURORA-3P | |
| Tuning range | 1250 – 1800 nm | |
| Typical output wavelength | 1300 nm and 1700 nm（switchable output） | |
| 1300nm | 1700nm | |

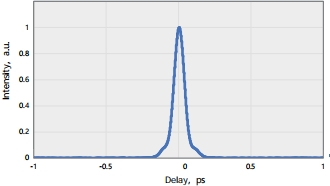

| Pulse duration(FWHM) | <60 fs@1300 nm | <70 fs @1700 nm |
| Repetition rate1) | Single pulse-1MHz | |
| Dispersion compensation2) | −4000~+9000 fs²@1300nm | −12000~+2900 fs²@1700nm |

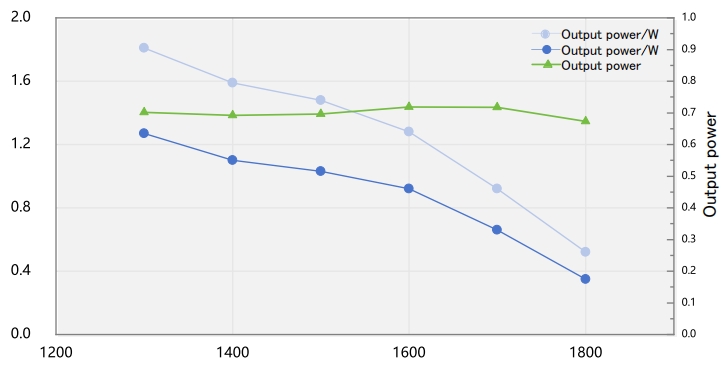

| Output power3） | 1000mW@1 MHz | 600mW@1 MHz |
| Beam quality M² | < 1.3 | |
| Beam diameter4） | 2-4mm | |
| Beam divergence angle | <1mrad | |
| Beam ellipticity | >0.8 | |
| Pulse energy stability | <1% RMS @24h | |

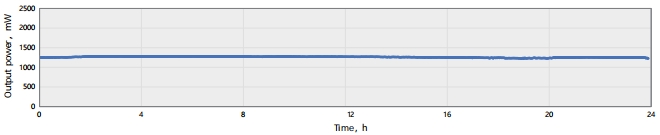

| Pulse power stability | <1% RMS @24h | |

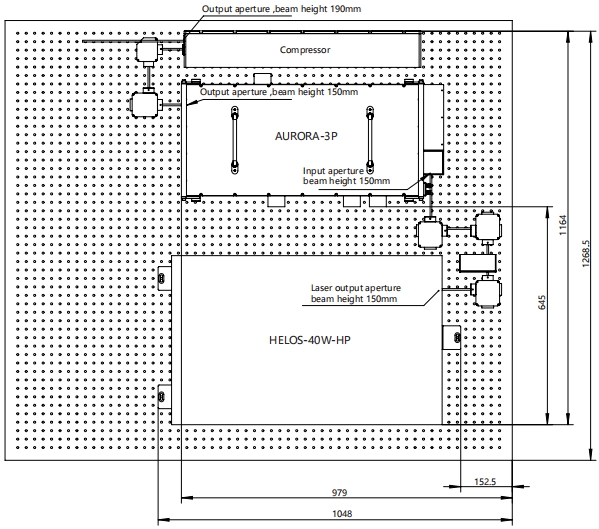

| Dimensions (L×W×H) | 1050x1165x222mm (LxWxH) | |
| Weight (kg) | 47kg（OPA）+20kg | |
| Power supply requirements | OPA，500W；water-cooled machine1，1260W；water-cooled machine2，1020W；total，2780W | |
The AURORA femtosecond optical parametric amplifier is based on a stable optical and mechanical desi...
