Tuning range from 210 nm to 10 μm
Compatible with up to 2 mJ pump energy
Conversion efficiency of up to >9%
High output stability
CEP stabilization option
Mechatronic design
The AURORA femtosecond optical parametric amplifier is based on a stable optical and mechanical design, enabling flexible tunable femtosecond laser pulse output. Its wavelength range covers from ultraviolet (as short as 210 nm) to mid-infrared (up to 10 μm).
The AURORA femtosecond optical parametric amplifier is compatible with market-standard fiber and solid-state Yb ultrafast lasers. The pump energy reception range is from 10 μJ to 2 mJ, and the pulse width compatibility range is from 100 fs to 1.5 ps. Customers can achieve precise tuning of the desired center wavelength with a single click, without the need for complex manual adjustments. Comprehensive customization solutions are available based on customer requirements.
Product video：http://www.yi-laser.com/support/video_100000020747738.html
|
Parameter |
AURORA-HP |
AURORA-HE |
|

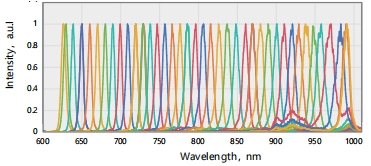

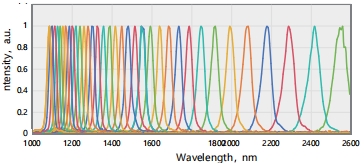

Tuning range |
630–1030nm (SignaI) 1030– 2600nm (Idler) |
|
|
Maximum pump power |
80W |
|
|
Pump pulse energy |
10-200uJ |
200-2000uJ |
|

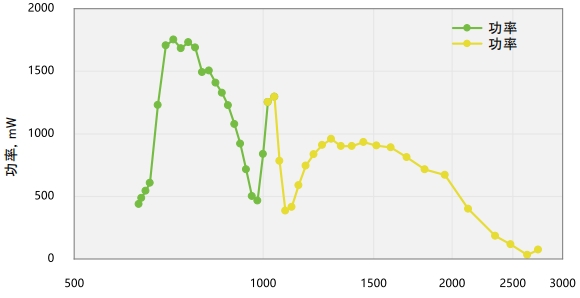

Peak conversion efficiency |
> 7% (Signal) |
> 7% (Signal) |
|
Pulse duration |
120~250fs |
|
|
Spectral bandwidth |
100cm-1-150cm-1 |
|
|

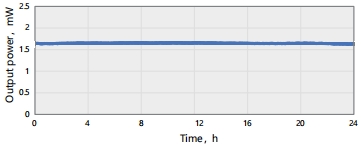

Long-term power stability |
< 2% RMS@ 750 nm |
|
|
Pulse-to-pulse energy stability |
< 2% RMS@ 750 nm |
|
|
Polarization |
Linear polarization |
|
|

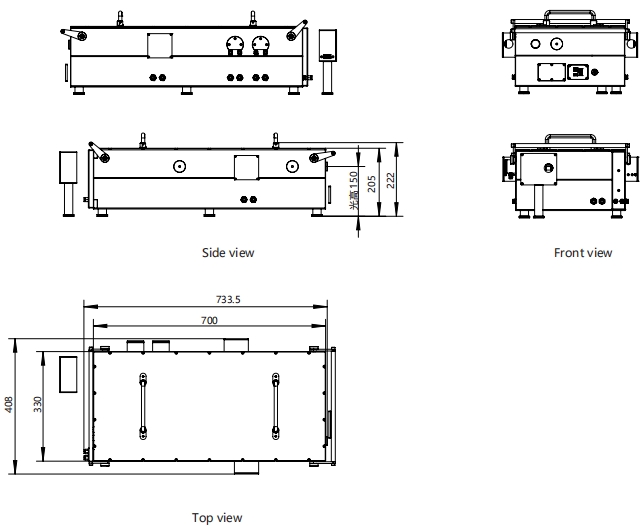

Dimensions (L×W×H) |
740x408x222mm (LxWxH) |
|
|
Weight (kg) |
75kg |
|
|
Expansion Options |
||
|
|
Wavelength tuning range |
Peak conversion efficiency |
|
Second harmonic generation module |
325-650nm |
≥2.4% |
|
Third harmonic generation module |
210-325nm |
≥0.8% |
|
Mid-infrared extension module |
2500-10000nm |
>3%@3000nm |
|
Power supply requirements |
Water-cooled machine：220V/0.6-5.6A/10.2kW |
24V DC Power Supply, Motor-Driven Power |
